200/200kN/m PP Woven Monofilament Geotextile For Harbor Protection

चीन 200/200kN/m PP Woven Monofilament Geotextile For Harbor Protection आपूर्तिकर्ता
200/200kN/m PP Woven Monofilament Geotextile For Harbor Protection आपूर्तिकर्ता 200/200kN/m PP Woven Monofilament Geotextile For Harbor Protection आपूर्तिकर्ता 200/200kN/m PP Woven Monofilament Geotextile For Harbor Protection आपूर्तिकर्ता

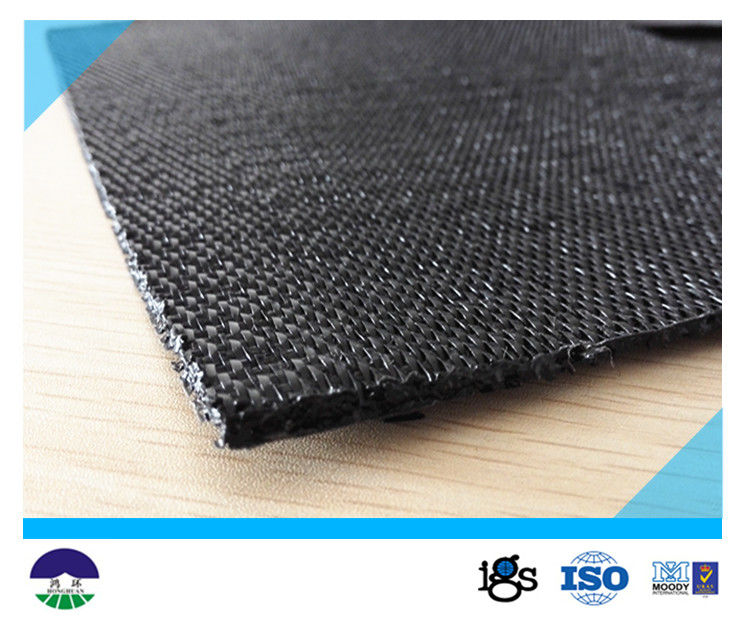

बड़ी छवि :  200/200kN/m PP Woven Monofilament Geotextile For Harbor Protection

उत्पाद विवरण:

Place of Origin: China
ब्रांड नाम: HongHuan
प्रमाणन: ISO9001
Model Number: MWG1000

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 10,000/m^2
Packaging Details: PP or PVC Fabric Rolls
Delivery Time: 30 days
Payment Terms: T/T, L/C
Contact Now
विस्तृत उत्पाद विवरण
Material: Polypropylene Color: Black
Type: Monofilament Woven Geotextile Tensile Strength: 200-200kN/m
Packing: Woven geotextile Product Model: MWG1000

200/200kN/m PP Woven Monofilament Geotextile For Harbor Protection

Description:



Mono-filament Woven Geotextile MWG®, which incorporate round strands that are extruded. It is composed of high-tenacity polypropylene yarns, which are woven into a network such that the yarns retain their relative position. Mono-filament woven geotextile is preferred for applications where both strength and filtration are a concern, such as shoreline rip rap applications.​



Quick detail:

Material: PP
Machine width: ≤3.8m
Tensile strength: Warp@200kN/m, Weft@200kN/m

MWG1000® Specification Date Sheet:

MWG1000® Technical Specification

Property

Test Method

Metric Value

English Value

Tensile strength MD

ASTM D 4595

200 KN/m

44914 lbs

Tensile strength CD

ASTM D 4595

200 KN/m

44914 lbs

Elongation MD

ASTM D 4595

20%

20%

Elongation CD

ASTM D 4595

20%

20%

Factory Seam Strength ASTM D 4884 135 KN/m 30317 lbs

Apparent Opening Size

ASTM D 4751

0.6 mm

56 US Sieve

Permittivity

ASTM D 4491

0.35 sec-2

0.35 sec-2

Water Flow Rate

ASTM D 4491

815 L/min/m2

20 g/min/sf

UV Resistance
(% retained after 500 hours)

ASTM D 4355

80%

80%

NOTES:
·The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
·The material used to produce this item is virgin polypropylene.


Features:

Color: Black
Temperature Range: 0°C ~ +150°C

Permeability: Could control the sieve size to retain certain permeability.
Durability: Steady property, not easy to resolved,air slaked and can keep the original property long term.
Water permeability: PP woven fabrics can effectively control the pore structure, in order to achieve a certain permeability



Applications:

(1) Filtration:
The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.

(2) Geotube For Protection:
Protection geotube has high strength and good permeability. It is widely used in shoreline/harbor protection and marine structure construction.
