105/84kN/m PP Monofilament Woven Reinforcement Geotextile Fabric For Geotube

चीन 105/84kN/m PP Monofilament Woven Reinforcement Geotextile Fabric For Geotube आपूर्तिकर्ता

बड़ी छवि :  105/84kN/m PP Monofilament Woven Reinforcement Geotextile Fabric For Geotube

उत्पाद विवरण:

उत्पत्ति के प्लेस: चीन
ब्रांड नाम: HongHuan
प्रमाणन: ISO9001
मॉडल संख्या: MWG770

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा: 10,000 / मी ^ 2
पैकेजिंग विवरण: पीपी या पीवीसी कपड़ा रोल
प्रसव के समय: 30 दिन
भुगतान शर्तें: टी/टी, एल/सी
Contact Now
विस्तृत उत्पाद विवरण
Material: Polypropylene Color: Black
Type: Monofilament Woven Geotextile Product Model: MWG770
Geotube Dimention: According to customer's requirement Port: Ningbo/Shanghai

105/84kN/m PP Monofilament Woven Geotextile For Geotube
Quick detail:
Material: PP
Machine width: ≤3.8m
Tensile strength: Warp@105.1kN/m, Weft@84kN/m

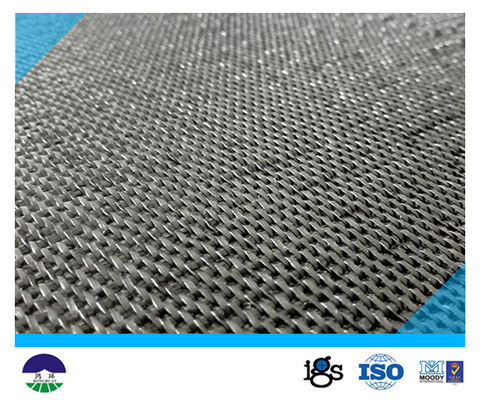

Mono-filament Woven Geotextile MWG®, which incorporate round strands that are extruded. It is composed of high-tenacity polypropylene yarns, which are woven into a network such that the yarns retain their relative position. Mono-filament woven geotextile is preferred for applications where both strength and filtration are a concern, such as shoreline rip rap applications.​

MWG770® Specification Date Sheet:

MWG770® Technical Specification


Test Method

Metric Value

English Value

Tensile strength MD

ASTM D 4595

105.1 KN/m

23602 lbs

Tensile strength CD

ASTM D 4595

84 KN/m

18864 lbs


ASTM D 4595



Tensile Strength at




2%, MDASTM D 459521 KN/m4716 lbs
2%, CDASTM D 459522.8 KN/m5120 lbs
5%, MDASTM D 459552.5 KN/m11790 lbs

5%, CD

ASTM D 4595

47.1 KN/m

10577 lbs

Factory Seam StrengthASTM D 488443.8 KN/m9836 lbs

Apparent Opening Size

ASTM D 4751

0.6 mm

56 US Sieve


ASTM D 4491

0.04 sec-2

0.04 sec-2

Water Flow Rate

ASTM D 4491

611 L/min/m2

15 g/min/sf

UV Resistance
(% retained after 500 hours)

ASTM D 4355



·The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
·The material used to produce this item is virgin polypropylene.

Color: Black
Temperature Range: 0°C ~ +150°C

Permeability: Could control the sieve size to retain certain permeability.
Durability: Steady property, not easy to resolved,air slaked and can keep the original property long term.
Water permeability: PP woven fabrics can effectively control the pore structure, in order to achieve a certain permeability
(1) Filtration:
The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.
(2) Separation:
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.
(3) Dewatering Geo-tube:
Dewatering Geo-tube is high efficiency filtration products designed to effectively remove silt, sand, sediment and other unwanted materials from your discharge or storm water runoff.
Dewatering geo-tube has been frequently used during dredging, construction work, lagoon
sludge removal, and other sediment removal processes.
